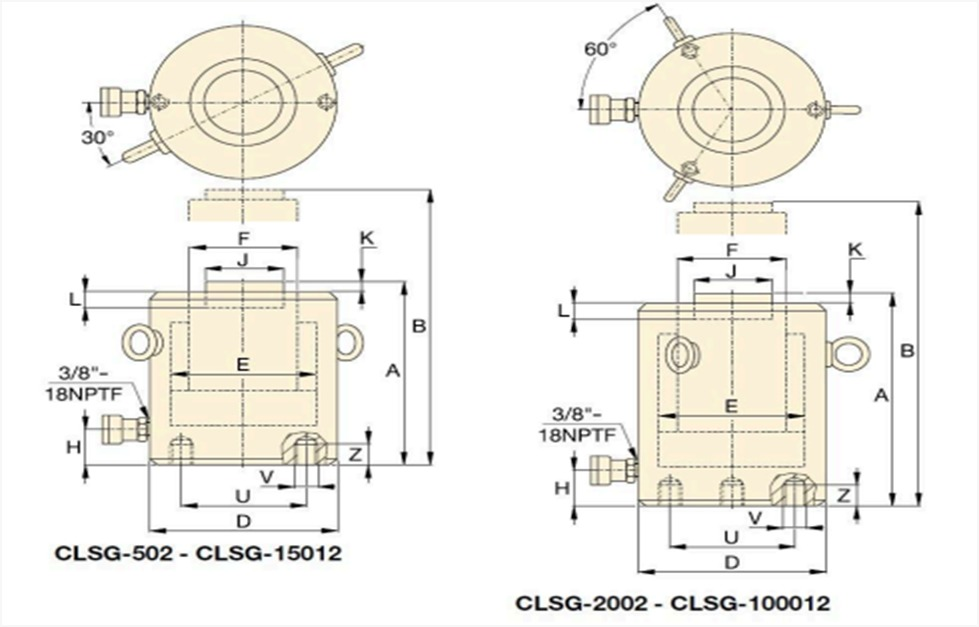

All the dimensions are in millimeters

We specialize in the manufacture of compact hydraulic cylinders—also called low height or high tonnage cylinders—engineered for optimal performance in tight spaces without sacrificing lifting power. Our cylinders are preferred for heavy lifting, pressing, maintenance, and rigging where space is limited and load requirements are extreme.

Features and Design Advantages

• Ultra-Low Profile Construction
  Designed with a minimal height-to-stroke ratio, these cylinders deliver impressive force within a compact envelope, enabling reliable operation in confined areas where other cylinders cannot fit.
• High Tonnage Capability
  Precision-engineered to withstand and exert extremely high forces, our compact cylinders are typically constructed from high-strength steel or alloy and utilize thick-walled barrels and robust pistons for maximum load capacity and safety.
• Rigorous Sealing and Wear Resistance
  Advanced sealing systems minimize leakage even at high pressures, while premium wear rings and surface treatments—like hard chrome plating—ensure durability, corrosion resistance, and smooth performance in demanding environments.

• Versatile Mounting and Serviceability
  Compact hydraulic cylinders often include base mounting holes or grooved profiles for secure installation. Their simplified construction, such as welded end caps or integrated designs, allows for easier maintenance and fast deployment in critical field operations.


Manufacturing Process Overview

• Design & Material Selection
  Every compact cylinder begins with technical drawings tailored to the required load, stroke, and operational environment. High-grade steel or specialty alloys are selected to achieve exacting tolerances and ensure component longevity.

• Precision Machining
  Cylinder barrels, pistons, and end caps are machined using state-of-the-art CNC lathes and milling machines to ensure perfect concentricity and dimensional accuracy. Hard chrome plating and polishing of rods and internal surfaces reduce friction and enhance seal life.

• Welding & Heat Treatment
  Where necessary, cylinder components like barrel and end caps are joined using high-precision welding methods, then heat-treated to achieve the correct hardness, structural strength, and fatigue resistance.

• Assembly & Sealing
  Components are carefully assembled under clean, controlled conditions. Precision-fitted seals, wear rings, and high-performance lubricants are installed to ensure reliable operation even under heavy cycling and extreme loads.

• Testing & Quality Control
  Every assembled unit undergoes pressure and functional testing—often at magnified loads (up to 1.5× rated capacity)—to ensure leak-free, smooth, and safe actuation. Detailed inspections for dimensional accuracy and structural integrity are standard to maintain consistent, certified quality.


Applications

Compact hydraulic cylinders are essential for:

• Industrial maintenance and equipment jacking
• Bridge lifting and infrastructure support
• Heavy machinery installation and die pressing
• Rescue operations and confined space lifting

Why Choose Our Compact Hydraulic Cylinders?

• Expert engineering for maximum tonnage with minimal size
• Comprehensive quality assurance for safety and longevity
• Options for standard or custom designs to fit your application

Contact us for tailored compact cylinder solutions that deliver unmatched strength and reliability—no matter how restrictive your space or how high your tonnage requirement.
